TP-Link VIGI NVR1016H 16 Channel Network Video Recorder, 24/7 Continuous Recording,Up To 10TB(HDD Not Included),16 Channel Live View, UpTo 8MP 3Y (LD)

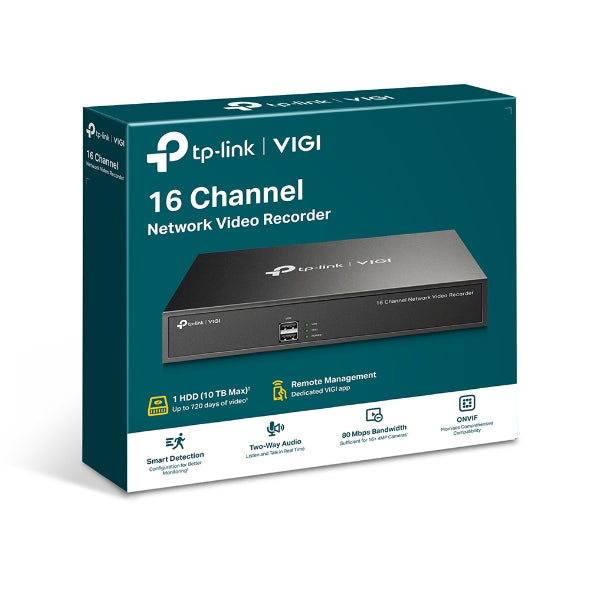

TP-Link VIGI NVR1016H VIGI 16 Channel Network Video Recorder

• 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.
• 16-Channel Real-Time Live View: Sharp image definition up to 8MP and a 16-channel display ensures you capture every detail, from every angle.
• Quick Lookup and Playback: Find the target footage easily by date, event types, and tags. Replay with variable playback speeds to quickly review footage.
• Remote Monitoring: Dedicated VIGI app is developed for remote monitoring, providing ease and convenience.
• H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• ONVIF Ensure Compatibility*: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
• 1 HDD Interface (up to 10 TB)†: Stores up to 10 TB (720 days△ of video) on a SATA hard drive, keeping your data storage secured locally.
• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.

NETWORK
Protocol TCP/IP, DHCP, DNS, NTP, UPnP
Incoming Bandwith 80 Mbps
Outgoing Bandwidth 60 Mbps

GENERAL
Operating Temperature -10–55 °C
Dimensions( H X W X D ) 246.2 × 148.2 × 45 mm
Weight 578.5 g
External Power Supply 12V DC/1.5 A
Power Consumption 4.25 W (without disk)
13.10 W (with disk)

VIDEO/IMAGE
Video Input 16-Channel IP Video Input, up to 8 MP Resolution
Video Output Recording Resolution: 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI/VGA
Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz

DECODING
Decoding Format H.265+/H.265/ H.264+/H.264
Live View/Playback Resolution 8 MP/5 MP/ 4 MP/3 MP/1080p/UXGA/
720p/VGA/4CIF/DCIF/2CIF/CIF
