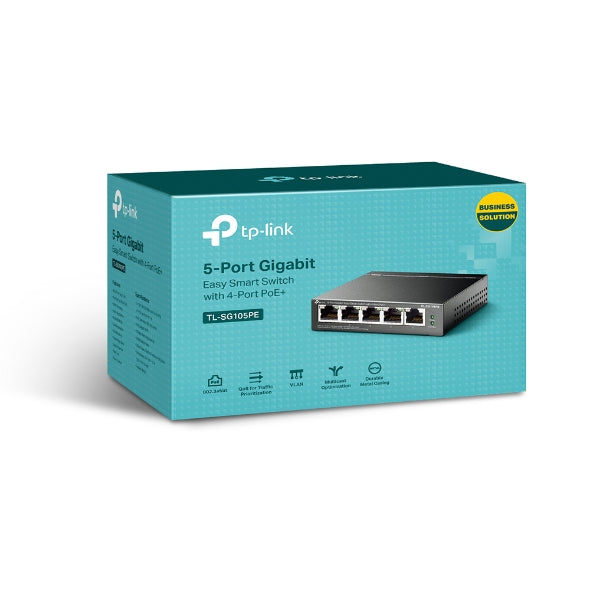

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+, Up To 65W For All POE Ports, Up To 30W Each Port

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

• Five 10/100/1000Mbps RJ45 ports
• Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data and power can be transferred on one single cable
• Supports PoE power up to 65 W for all PoE ports
• Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
• Simple network set-up on top of plug-and-play connectivity
• Web-based user interface and Easy Smart Configuration Utility simplify configuration

HARDWARE FEATURES
Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at
Interface Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Power Supply External Power Adapter (Output: 53.5 VDC/1.31 A)
PoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W
Max Power Consumption 4.52 W (220V/50Hz with no PD connected)
75.16 W (220V/50Hz with 65 W PD connected)
Max Heat Dissipation 15.41 BTU/h (with no PD connected)
256.30 BTU/h (with 65 W PD connected)

PERFORMANCE
Switching Capacity 10 Gbps
Packet Forwarding Rate 7.44 Mpps
MAC Address Table 2 K
Packet Buffer Memory 1.5 Mb
Jumbo Frame 16 KB

SOFTWARE FEATURES
Quality of Service Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode
VLAN Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
