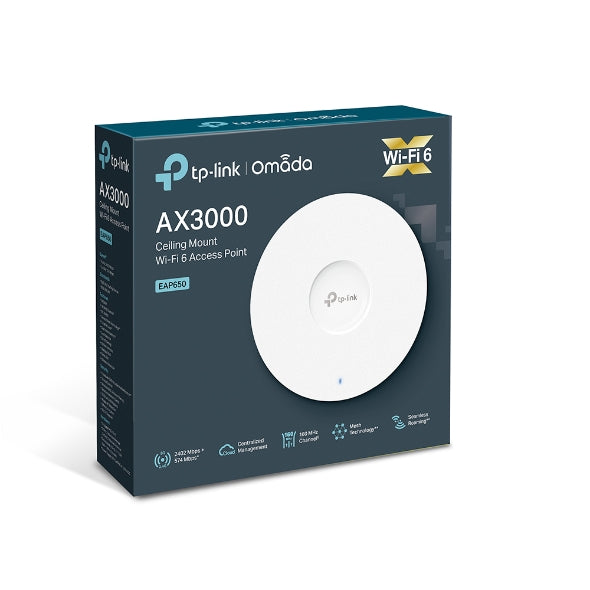

TP-Link EAP650 AX3000 Ceiling Mount WiFi 6 Access Point, 574 Mbps 2.4 GHz/2402 Mbps 5 GHz, Gigabit Ethernet (RJ-45) Port, Omada Cloud Managemen, Mesh

TP-Link EAP650 AX3000 Ceiling Mount WiFi 6 Access Point

• Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†
• High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
• Centralised Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
• 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡
• Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§
• Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
• Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.

HARDWARE FEATURES
Interface 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button Reset
Power Supply • 802.3at PoE
• 12 V / 1.0 A DC (EU), 12 V / 1.5 A DC (US)
Power Consumption • EU: 13.5 W
• US: 14.7 W
Dimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type Internal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
Mounting • Ceiling /Wall Mounting (Kits included)
• Junction Box Mounting

Package Contents
• EAP650
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide

System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
