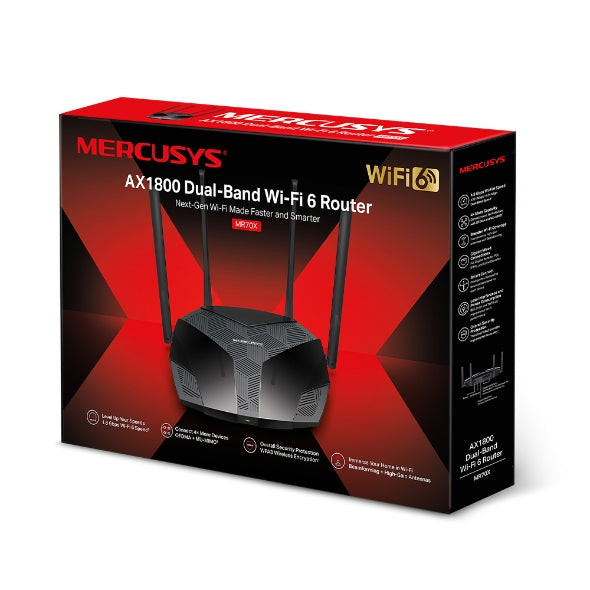

Mercusys MR70X AX1800 Dual-Band WiFi 6 Router, Up to 1.8Gbps, OFDMA, MU-MIMO, WPA3

Mercusys MR70X AX1800 Dual-Band WiFi 6 Router, Up to 1.8Gbps, OFDMA, MU-MIMO, WPA3

MR70X
AX1800 Dual-Band WiFi 6 Router
Next-Gen WiFi 6 Speeds – Optimal WiFi 6 speeds reaching up to 1.8 Gbps (1201 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band)
4× More Capacity – OFDMA and MU-MIMO allow simultaneous data transmission to and from several devices, improving overall network efficiency
Broader, Stronger Coverage – 4× multi-directional high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
Overall Security Protection – The latest WPA3 provides improved WiFi security
Gigabit Wired Connections – Make full use of your internet access and transfer data at dizzying speeds for peak performance
Eco-Friendly Power Saving – Target Wake Time (TWT) reduces power consumption for your mobile and IoT devices during data transmissions
Less WiFi Interference – Minimizes the interference from neighboring signals to improve transmission efficiency with BSS color
Smart Connect – Intelligently chooses the best available band for each device
Access Point Mode – Extends a wired network and makes it wireless

WirelessWireless Standards
Compatible with 802.11ax/ac/a/b/g/n Wi-Fi standards

Signal Rate
1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)

Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7:-74dBm
11n HT20 MCS7:-77dBm
11a 6Mbps:-94dBm
11a 54Mbps:-76dBm
11ac VHT20 MCS8:-71dBm
11ac VHT40 MCS8:-68dBm
11ac VHT80 MCS8:-65dBm

Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)

Wireless Security
WPA-PSK / WPA2-PSK/ WPA3 wireless encryption

Wireless Functions
Enable/Disable Wireless Radio, WMM

SoftwareWAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management
Access Control
Local Management
Remote Management

DHCP
Server, DHCP Client List

NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ

Firewall Security
SPI
